Solenoid valve (HS)

The Hansen HS solenoid valves are designed for industrial refrigeration systems operating with NH₃. The minimum required opening pressure is very low, and the PTFE seal ensures perfect sealing. Coils are available in 24 V AC, 24 V DC, 110 V AC, or 230 V AC and are supplied as standard with a DIN plug connection.


The solenoid valves are supplied as standard with weld flanges. To minimize installation time, Hansen valves can be directly connected to Hansen filters (ST) and check valves (HCK). In most cases, Hansen solenoid valves can replace R/S and Parker valves without modifications. All Hansen control valves are CE-PED compliant.

Applications

  • On/off control in LD or HD liquid lines

  • Discharge hot gas or small suction gas capacities

  • Oil

Available types

HS2

  • Direct acting, spring closing

  • Stainless steel seat and PTFE disc

  • Steel body

  • 1/4", 3/8", 1/2" NPT threaded connection

  • Kv value: 0.35

HS6

  • Direct acting, spring closing

  • Removable coil housing

  • Stainless steel seat and PTFE disc

  • Steel body

  • Manual stem

  • Kv value: 0.35

  • DN 10 to 20

HS8A

  • Stainless steel piston and spring

  • PTFE seal

  • Tapered seat

  • Manual stem

  • Kv value: 2.5

  • DN 10 to 20

HS7

  • Stainless steel spring and V-port piston

  • PTFE seal

  • Nodular cast iron body

  • Tapered seat

  • Manual stem

  • Kv value: 6.9 to 13.9

  • DN 20 to 32

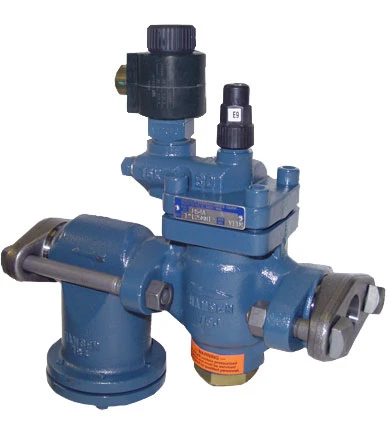

HS4A

  • Stainless steel spring and V-port piston

  • Self-cleaning disc piston

  • Nodular cast iron body

  • Manual stem

  • Kv value: 5.9 to 137.5

  • DN 20 to 150
